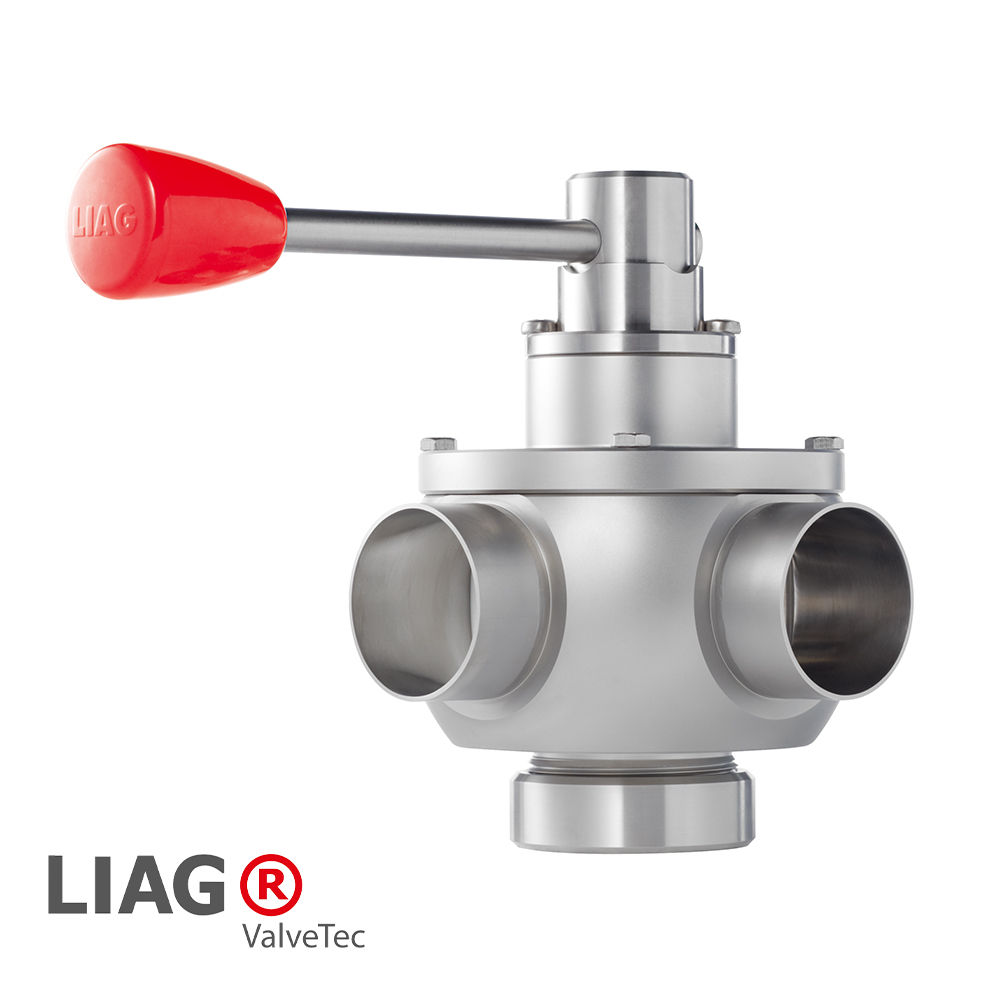

LIAG® Sanitary Free Flow Arc Valves

LAUFER Free Flow Arc Valves are engineered for high-hygiene processing where product purity, reliability, and efficiency are critical. Designed according to 3-A and FDA sanitary standards, these valves feature a completely clear passage with no dead pockets, ensuring full cleanability and minimal product loss.

Ideal for viscous or particulate media, they deliver unrestricted flow and superior CIP/SIP performance. With a simple, durable design and minimal wear parts, LIAG® Arc Valves provide dependable, low-maintenance operation and are especially suited for hygienic pigging and product recovery systems.

Key Features

3-A 51-01 and FDA compliant.
Clear passage with no pressure loss.
CIP/SIP capable design for total cleanability.
Self-centering shutter segment with single moving O-ring.
Minimal components and wear parts.
Can be dismantled even when welded in place.
Operating pressure up to 290 psi (20 bar).
Temperature range up to 392°F (200°C).
Available in 2-way, 3-way, and pig diverter configurations.
Constructed from 316L stainless steel with EPDM, FKM (Viton®), or PTFE seals.
CRN certified.

Industries

Food, Beverage, Dairy

Why Choose LAUFER Arc Valves?

Hygienic by Design: Eliminates dead zones for complete cleanability and product safety.
Optimized for Pigging: Clear passage supports efficient product recovery and reduced waste.
Low Maintenance: Minimal components ensure long service life and easy upkeep.
Versatile Integration: Compatible with various configurations and process connections.
