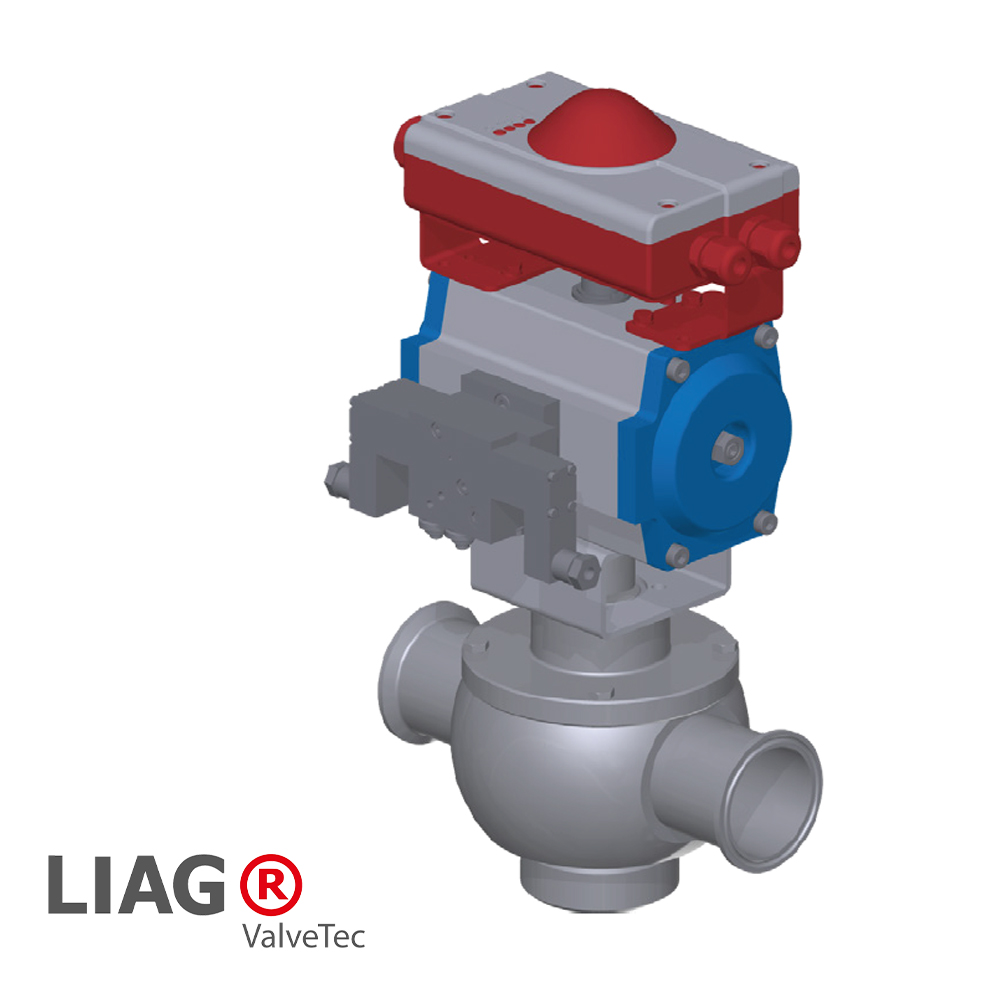

LIAG® 2-Way Control Arc Valves

LAUFER 2-Way Control Arc Valves are designed for precise flow control in hygienic processing applications. With a smooth flow path and favorable flow characteristics, these valves are ideal for proportioning viscous or pasty products and sensitive media that may contain solid particles.

Engineered to meet 3-A and FDA standards, the valves ensure hygienic, product-saving performance while maintaining full cleanability. Depending on the process requirements, they can be supplied with different shutter qualities and linearization inserts to optimize flow control. Operation is managed via a standard 4–20 mA (0–10 V) electro-pneumatic actuator, allowing for accurate, repeatable adjustments.

Key Features

Available sizes: 1″ – 4″.
No dead pockets for full hygienic performance.
CIP/SIP capable for efficient in-place cleaning.
Product-saving proportioning and smooth flow characteristics.
Prevents buildup and sticking of solid particles.
Optional linearization inserts for precise control.
Minimal components and wear parts for easy maintenance.
Can be dismantled even when welded in place.
3-A (51-01) and FDA compliant.
Identical wear and spare parts as LIAG® shutter valves.
CRN certified.
Constructed from 316L stainless steel with EPDM, FKM (Viton®), or PTFE seals.

Industries

Food, Beverage, Dairy

Why Choose LAUFER 2-Way Control Arc Valves?

Precise Flow Control: Designed for accurate proportioning of viscous and pasty media.
Hygienic and Efficient: Ensures product safety and full CIP/SIP cleanability.
Customizable Performance: Shutter options and linearization inserts match process needs.
Low Maintenance: Minimal parts and easy disassembly reduce service time.
