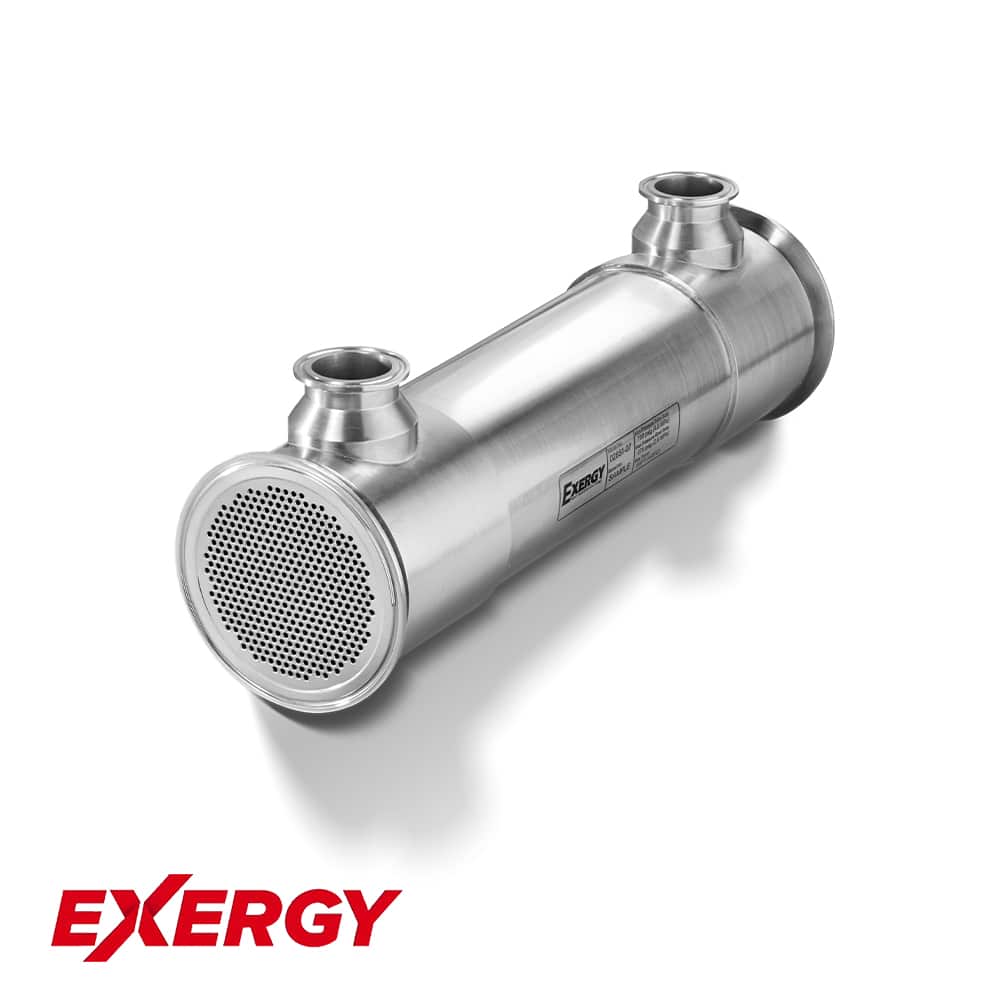

Exergy Sanitary Shell & Tube Heat Exchangers

Exergy Sanitary Shell & Tube Heat Exchangers provide compact, high-performance heating and cooling for pharmaceutical, biotechnology, and other high-purity processes. Product-contact surfaces feature a maximum finish of 20 µin (0.5 µm) Ra, with optional electropolishing to 15 µin (0.38 µm) Ra or better. Single- and double-tubesheet configurations are available, with double-tubesheet designs helping reduce the risk of cross-contamination between product and utility fluids.

Key Features

High Heat Transfer Capacity: Supports heat transfer rates up to 5,000,000 BTU/hr (1,465 kW).
High Flow and Pressure Ratings: Accommodates liquid flow rates up to 250 GPM (946 LPM) and pressures up to 1,500 psi (104 bar).
Compact, Space-Efficient Design: Delivers substantial heat transfer performance within a relatively small footprint.
Hygienic Product-Contact Surfaces: Standard product-contact surfaces have a maximum finish of 20 µin (0.5 µm) Ra.
Optional Electropolishing: Surface finishes can be improved to 15 µin (0.38 µm) Ra or better for demanding high-purity applications.
Cross-Contamination Protection: Available with single- or double-tubesheet construction to match process requirements.
Fully Drainable Tube Side: Designed to support effective draining and hygienic operation.
Clean-in-Place Capability: Compatible with clean-in-place processes for more efficient system cleaning.

Industries

Personal Care, Life Sciences

Hygienic Design and Material Options

Exergy Sanitary Shell & Tube Heat Exchangers are available in 316L stainless steel, 1.4435 stainless steel, Hastelloy®, Inconel®, and other alloys. Additional design features include nickel-brazed construction, ASME Bioprocessing Equipment sanitary fittings, and configurations designed to meet ASME Bioprocessing Equipment requirements. Material and process certifications are also available to support documentation needs.

Typical Applications

Point-of-use cooling or heating
Water for Injection temperature control
Clean steam condensing and subcooling
Temperature control of high-purity products
Product sampling

Why Choose Exergy Sanitary Shell & Tube Heat Exchangers?

Designed for High-Purity Processing: Hygienic construction supports demanding pharmaceutical and biotechnology applications.
Reliable Process Separation: Double-tubesheet options help protect product from contamination by utility fluids.
High Performance in a Compact Footprint: High heat transfer capacity helps conserve valuable equipment and skid space.
Flexible Configuration Options: Select from multiple materials, surface finishes, and tubesheet designs.
Easier Cleaning and Drainability: Clean-in-place compatibility and a fully drainable tube side support hygienic operation.
Documentation Support: Material and process certifications are available for regulated applications.
