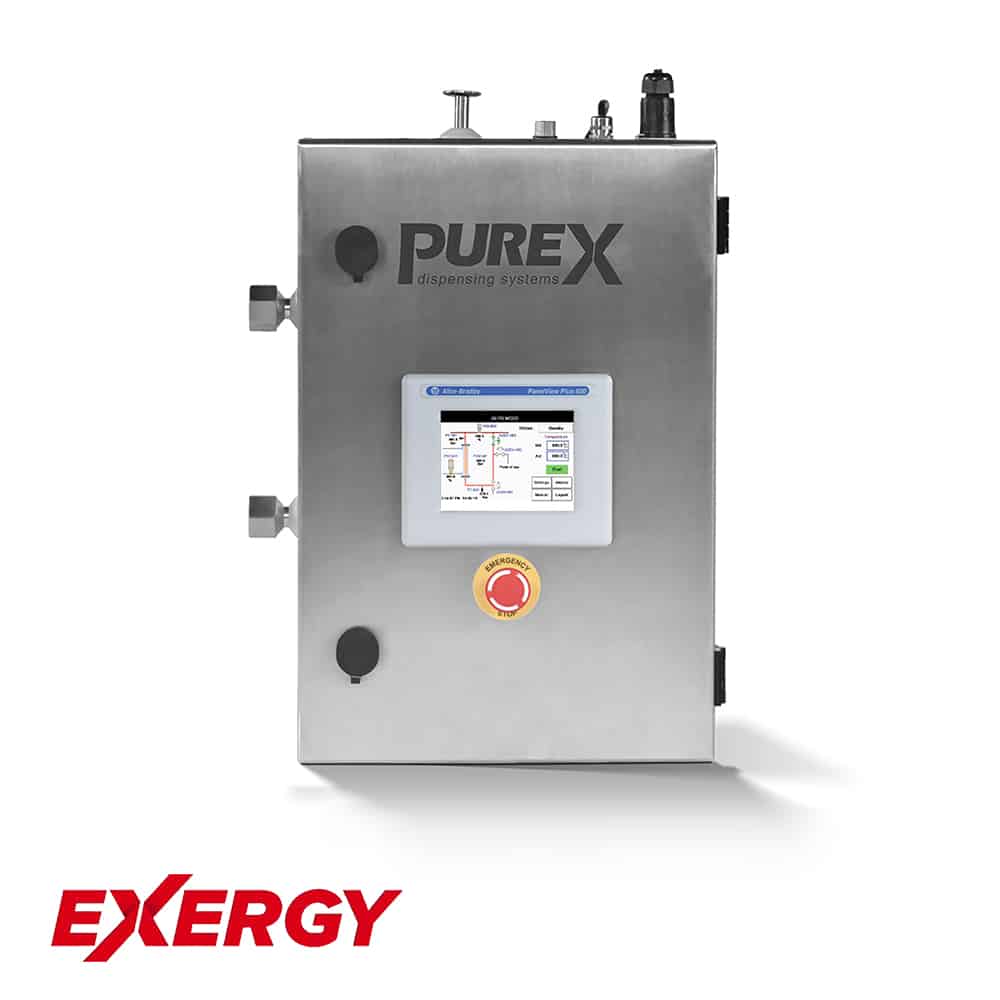

Exergy Point-of-Use (POU) System

The Exergy Point-of-Use System provides immediate access to temperature-controlled Water for Injection or Purified Water at the point of use. Designed for pharmaceutical and other high-purity applications, the system cools hot water from the main distribution loop while maintaining continuous circulation when dispensing is not required.

Available in standard and customizable configurations, the system uses a compact, high-performance heat exchanger to support reliable temperature control, hygienic operation, and efficient water dispensing.

Key Features

Instant Water Availability: Provides cooled or heated Water for Injection or Purified Water directly at the point of use.
Continuous Sanitization: Maintains a continuous flow of hot water when the system is not dispensing.
Precise Temperature Control: Cools hot WFI or PW from approximately 80–85°C to a dispensing temperature of 20–40°C.
Manual or Automated Operation: Configurable controls support different operating requirements.
Touchscreen Controls: Available with a programmable logic controller and touchscreen interface offering multiple operating modes.
Compact, Enclosed Design: A locking cabinet protects internal components while supporting a clean installation.
Easy Installation and Maintenance: Designed for straightforward operation, servicing, and integration into high-purity water systems.
Customizable Configuration: Features and operating options can be adapted to specific facility and process needs.

Industries

Personal Care, Life Sciences

Hygienic Design and Construction

The Exergy Point-of-Use System features a sanitary double-tubesheet heat exchanger that keeps product and utility fluids separated to help prevent cross-contamination. Product-contact surfaces are passivated with a surface finish of less than 20 µin Ra, with optional electropolishing available.

The system is constructed from 316L stainless steel and is fully drainable on the product side, with no dead legs. It is also compatible with clean-in-place and steam-in-place processes and designed to meet ASME Bioprocessing Equipment requirements. Quality documentation is available to support regulated applications.

Typical Applications

Cooling Water for Injection from 80–85°C to 20–40°C
Water for Injection dispensing systems
Purified Water dispensing systems
Pharmaceutical and biotechnology production
High-purity process water applications

Why Choose the Exergy Point-of-Use System?

Immediate Access to Controlled Water: Delivers WFI or PW at the required temperature where it is needed.
Supports Sanitary Operation: Continuous hot-water circulation helps maintain system sanitization.
Protects Product Quality: Double-tubesheet construction helps prevent cross-contamination.
Flexible Controls: Manual, automated, and touchscreen configurations are available.
Compact Installation: The enclosed cabinet fits easily into point-of-use locations.
Designed for Regulated Facilities: Hygienic construction and documentation support pharmaceutical and life science requirements.
