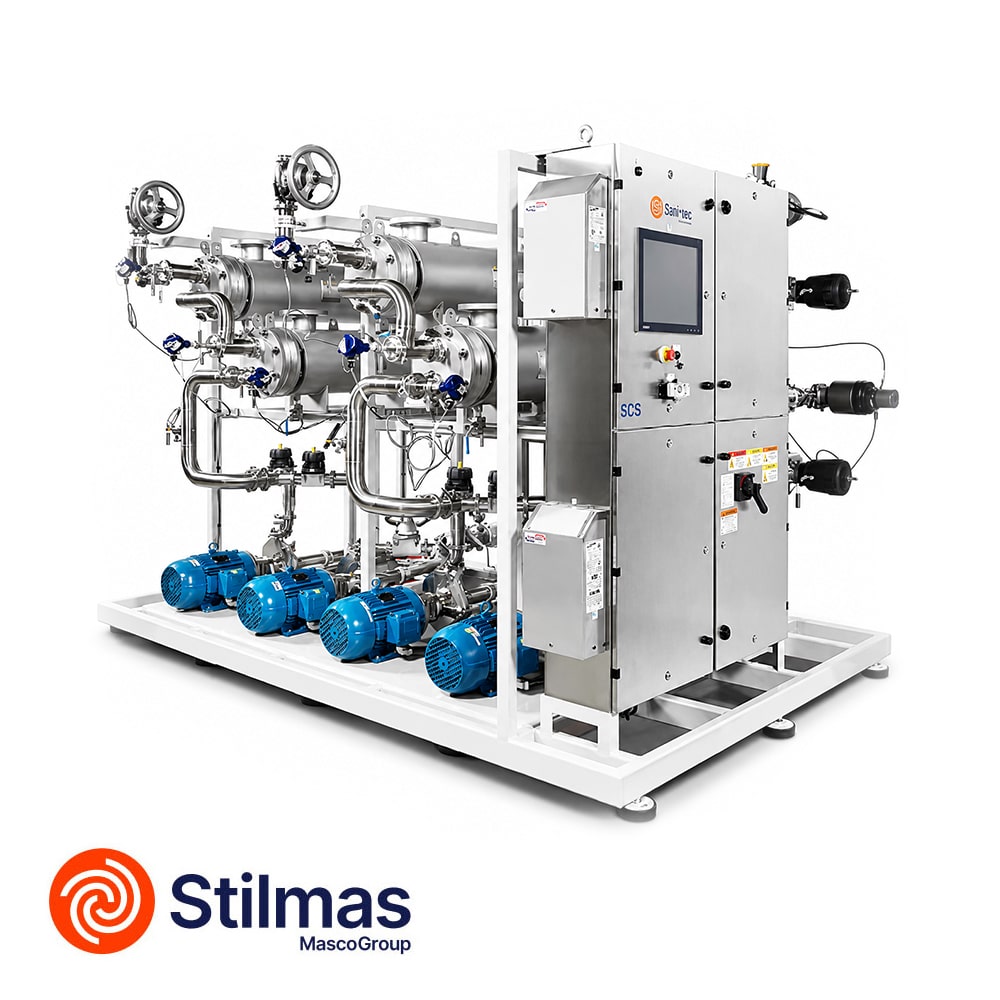

Custom Distribution Systems

Stilmas Custom Distribution Systems are engineered around each facility’s specific high-purity water storage and circulation requirements. Designed for Purified Water and Water for Injection applications, these systems help maintain water quality as it moves from storage to points of use throughout the facility.

Each system can be configured based on required storage capacity, distribution flow rate, sanitization method, automation platform, monitoring needs, available utilities, and site constraints.

Key Features

Custom System Design: Storage capacity, flow rate, equipment, controls, and instrumentation are configured around the facility’s process requirements.
Flow Rates Up to 250 GPM: Supports a wide range of purified water and WFI distribution demands.
Sanitary Storage and Circulation: Available with 316 stainless steel storage tanks, heat-traced vent filtration, and sanitary centrifugal pumps.
Integrated Temperature Control: Double tube sheet heat exchangers support heating, cooling, and sanitization requirements.
Water Quality Monitoring: Online Total Organic Carbon monitoring and other critical instrumentation can be incorporated for continuous system oversight.
Flexible Automation: Available with Allen-Bradley CompactLogix, ControlLogix, Emerson DeltaV, or Siemens control platforms.
Validation Support: Systems can include validation documentation, Site Acceptance Testing, and Installation and Operational Qualification support.

Industries

Personal Care, Life Sciences

Configurable Sanitization Options

Custom Distribution Systems can be designed around the sanitization method that best fits the facility’s water quality strategy and utility availability.

Continuous Heat: Maintains elevated temperatures throughout storage and distribution.
Periodic Hot Water Sanitization: Uses scheduled heating cycles to sanitize the storage tank and distribution loop.
Application-Specific Configuration: Additional sanitization approaches can be incorporated based on water quality requirements and available utilities.

Custom Distribution System Configuration

A custom system may include:

Customer-sized sanitary storage tank
One or more sanitary distribution pumps
Heating and cooling heat exchangers
Heat-traced vent filtration
Flow, pressure, temperature, conductivity, and Total Organic Carbon monitoring
Automated sanitization sequences
Touchscreen controls and programmable automation
Carbon steel or stainless steel skid frames and enclosures
Integration with facility control and monitoring systems

Need help determining the right configuration? Call Oliver M. Dean at 800-648-3326 or contact us to discuss your storage and distribution requirements.

Why Choose Stilmas Custom Distribution Systems?

Designed Around Your Facility: Each system is configured for actual process demand, utilities, site conditions, and operating goals.
Flexible Sanitization Strategies: Select a temperature and sanitization approach that supports your water quality requirements.
Integrated Controls and Monitoring: Critical system conditions can be monitored and managed through one coordinated platform.
Validation-Ready Support: Documentation and testing services help support startup and qualification.
