Stilmas 4400L and 2200L systems are compact high purity water systems designed for reliable purified water generation, storage, and distribution in a smaller footprint. These systems support facilities that need dependable water quality without the scale or complexity of a large centralized system.
With compact skid designs, touchscreen HMI and PLC controls, reverse osmosis technology, UV treatment, final filtration, and conductivity monitoring, the 4400L and 2200L help support consistent high purity water delivery to points of use.

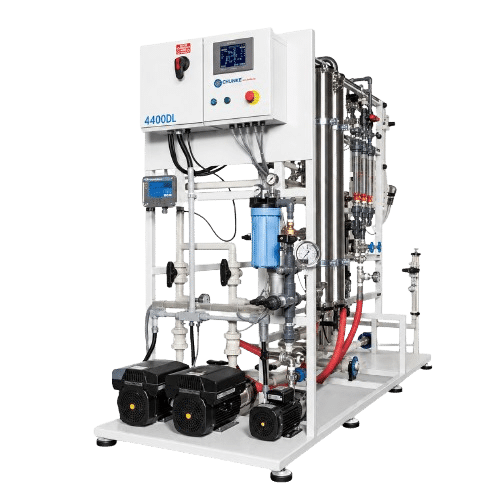

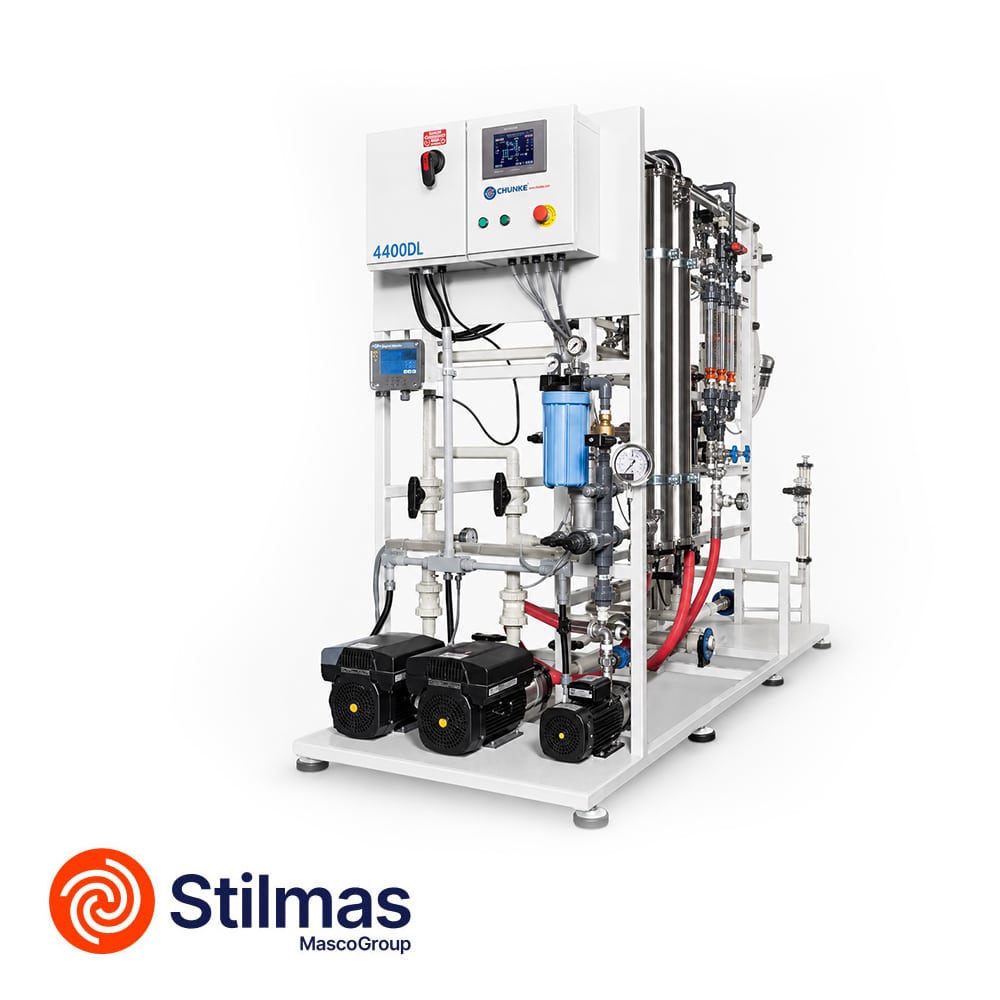

The 4400L is the larger compact system for moderate purified water generation, storage, and distribution needs.
Capacity
Common Uses

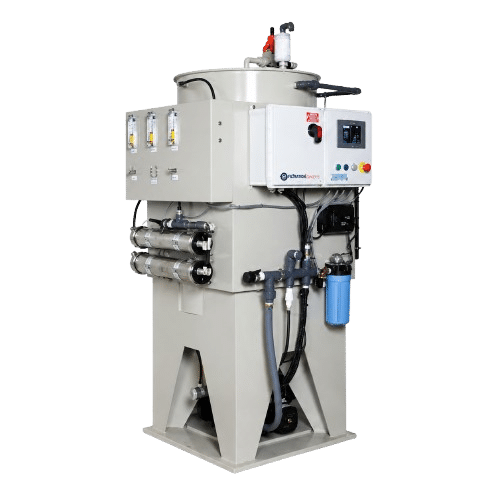

The 2200L is the smaller compact system for lower-flow purified water generation and distribution requirements.
Capacity
Common Uses
Both systems include core components to support high purity water generation and delivery, including reverse osmosis technology, distribution pumps, UV treatment, final filtration, conductivity monitoring, and touchscreen HMI/PLC controls. The 4400L can include optional EDI with slipstream polishing, while the 2200L can include optional DI cartridge filters.

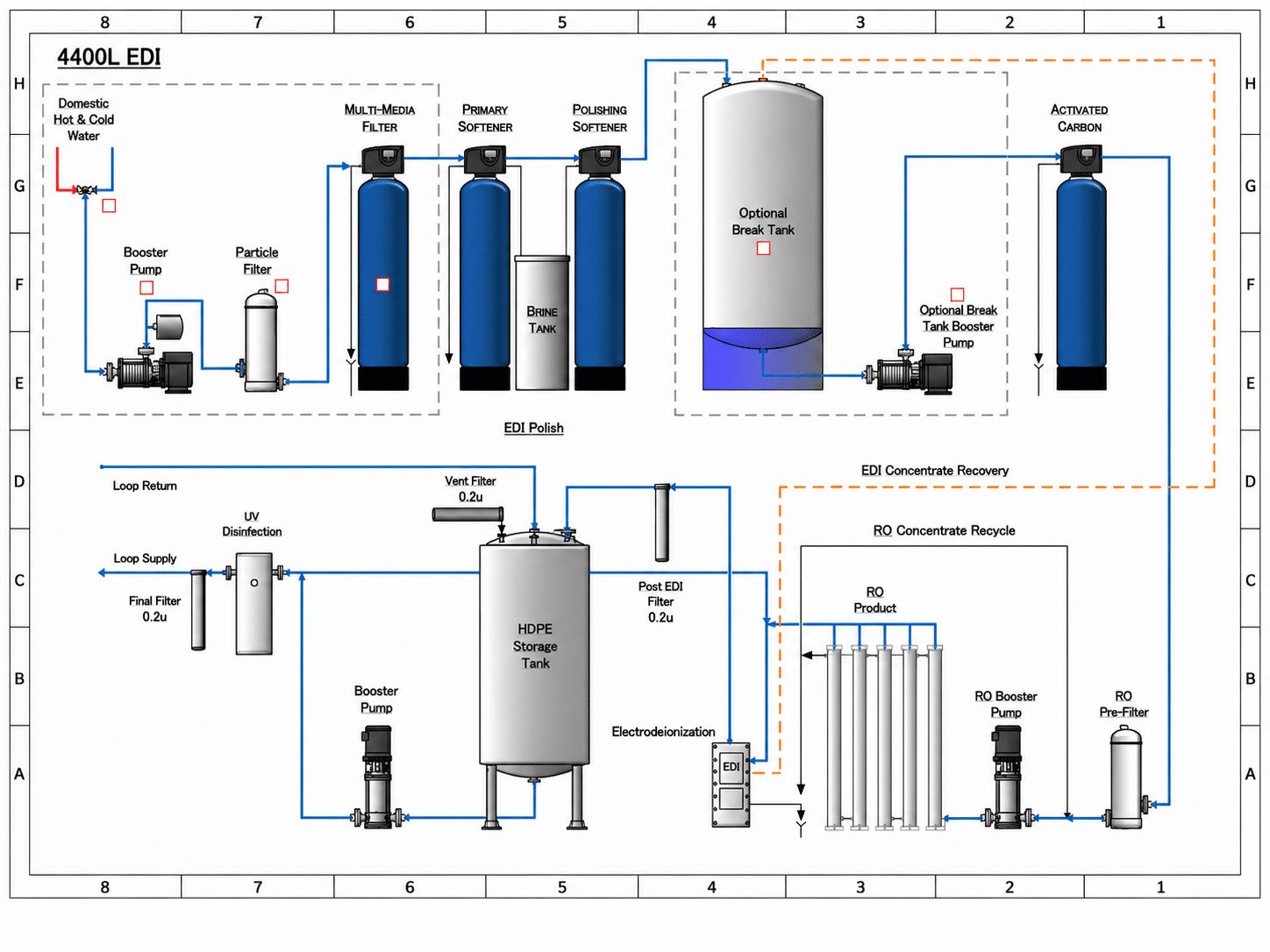

The 4400L can be configured with EDI polishing for applications that require consistent high purity water generation, storage, and distribution. The diagram below shows how pretreatment, reverse osmosis, electrodeionization, UV disinfection, filtration, storage, and loop supply/return components work together.
This configuration helps show the path from incoming feedwater through purified water production and delivery to points of use. Optional components can be selected based on facility needs, water quality requirements, and project goals.
Need help determining the right configuration? Call Oliver M. Dean at 800-648-3326 or contact us to discuss your water quality requirements, flow needs, utilities, and facility layout.
