Industry: Dairy Processing
Solution: Custom Mixproof Valve Manifold and Automated Dairy Processing System
Results: Improved hygienic milk production, reduced downtime, safer operations, and scalable dairy processing automation
The Challenge
A large regional dairy processor was operating with an aging, manual valve and hose-based routing system that no longer supported modern production or sanitation standards.
The legacy setup required extensive operator intervention, increasing the risk of product misrouting, inconsistent cleaning, and safety concerns. In addition, the system limited the dairy’s ability to support consistent shelf life requirements and expand distribution beyond its regional market.
Key challenges included:
- Manual valve operation with high risk of operator error
- Inconsistent sanitation impacting hygienic milk production
- Labor-intensive cleaning and changeover processes
- Downtime caused by inefficient routing and cleaning cycles
- Infrastructure that restricted dairy processing automation and future expansion
To remain competitive, the dairy plant needed to replace its manual system with a fully automated, sanitary process system that would improve quality, safety, and long-term scalability.
The Solution
Oliver M. Dean designed and delivered a custom mixproof valve manifold to fully automate product routing and cleaning throughout the dairy facility.

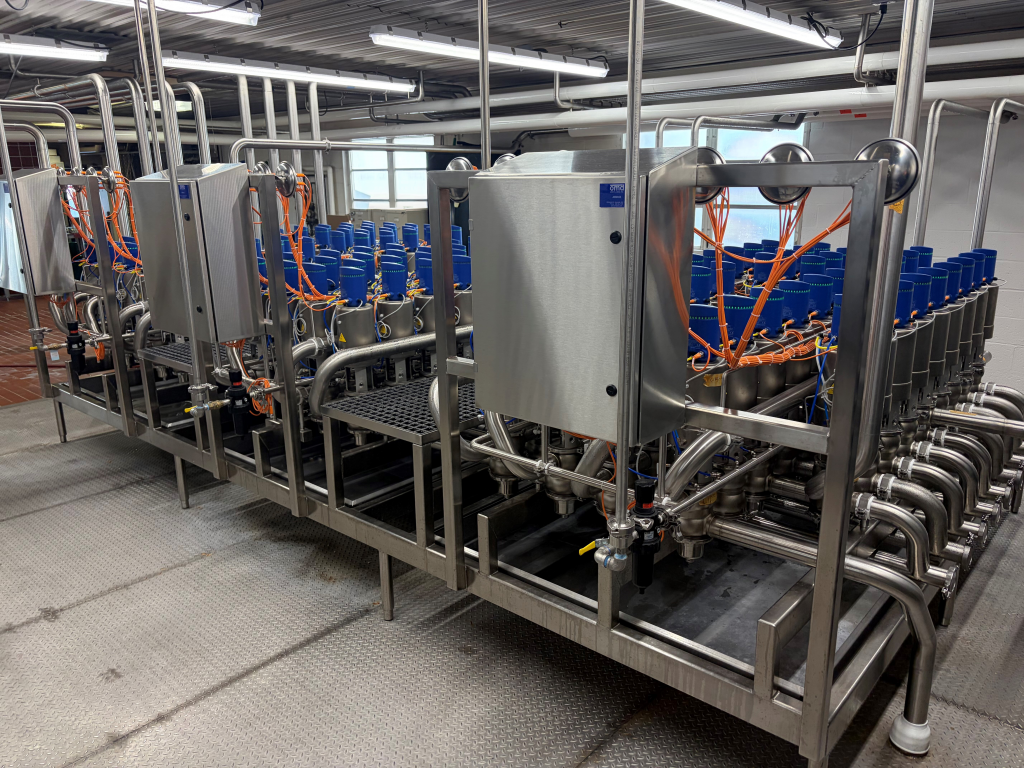

The solution replaced all manual routing with a centralized, automated dairy processing system engineered for hygienic milk production and operational flexibility.
The project included:
- A large-scale mixproof valve manifold with 131 mixproof valves
- Automated routing from 8 product silos plus auxiliary feeds to 14 filling lines
- Integrated clean-in-place (CIP) capability for simultaneous production and cleaning
- Detailed piping and instrumentation diagrams were developed to map product flow, cleaning cycles, and automation before installation
- Off-site fabrication, assembly, and testing to minimize on-site disruption
- Manifold design and space reserved for future expansion
By using mixproof valve technology, the system allows product transfer and CIP cycles to run safely at the same time, eliminating downtime previously required for cleaning. This mixproof valve manifold architecture represents the scalability modern hygienic milk production requires.
Engineering and Installation Considerations
Due to the size and weight of the system, this project required advanced sanitary process engineering and careful coordination.
Key considerations included:
- The fully assembled mixproof valve manifold weighed several thousand pounds, requiring engineered structural steel beams and supports beneath the system

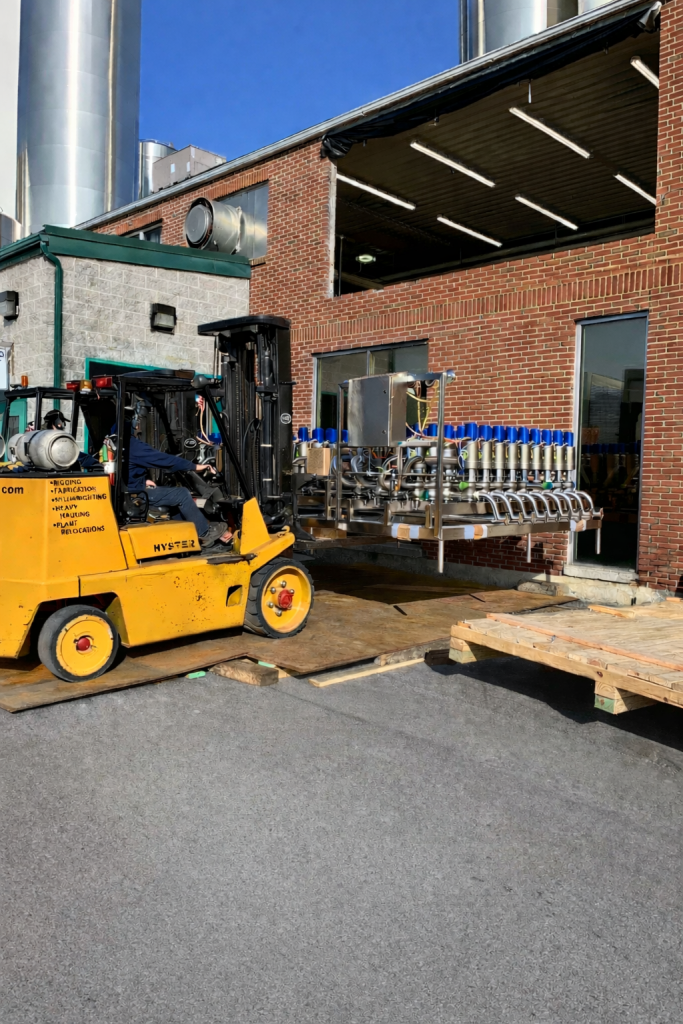

- A temporary opening was cut into the facility wall to maneuver the manifold into place

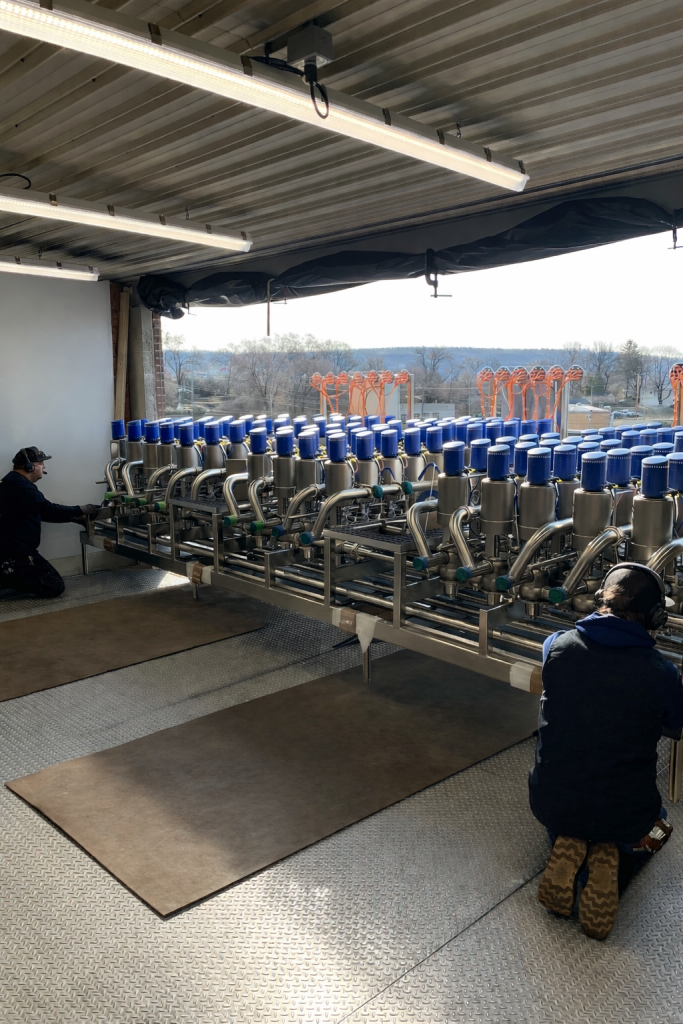

- Installation was completed within a tight plant footprint while maintaining operator access

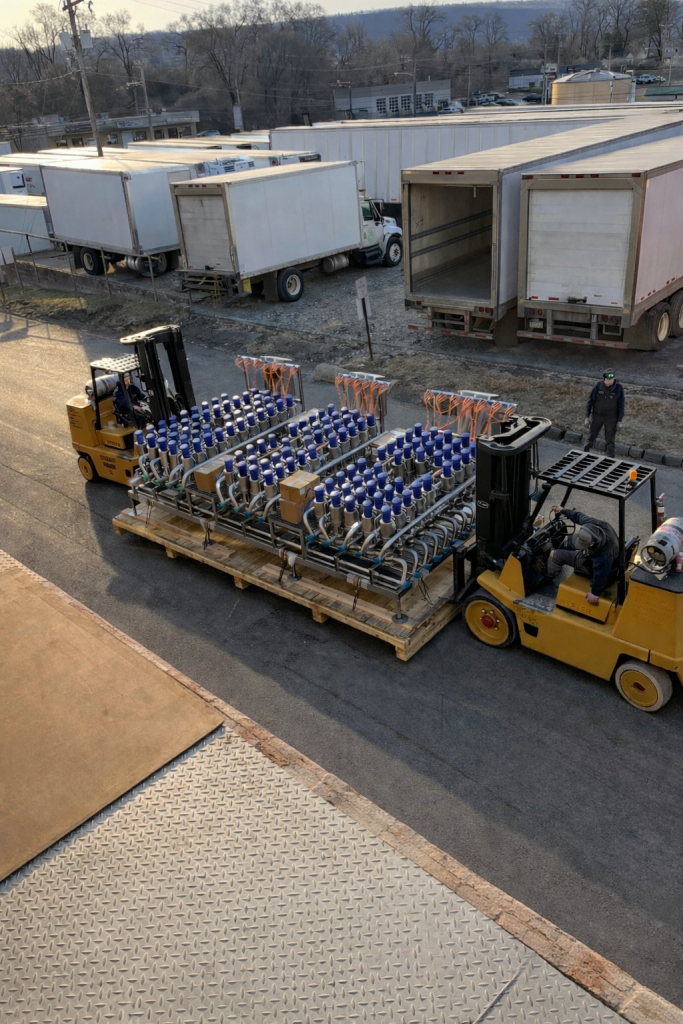

The manifold was fabricated and tested off-site, then transported at the maximum allowable size for over-the-road delivery. Once positioned, the system was piped in and commissioned in phases to support a controlled cutover.
The Results
Since becoming fully operational, the automated dairy processing system has delivered measurable improvements across quality, efficiency, and safety.
Improved Hygienic Milk Production
- Closed-system processing minimized potential contamination ingress from the plant floor during product transfer
- Consistent sanitation supported product integrity and shelf life requirements
- Automation enables potential broader distribution beyond the regional market
Reduced Downtime and Labor
- Automated CIP cycles shortened cleaning times by up to 10 minutes per cycle
- Faster, more consistent changeovers reduced production interruptions and positioned the facility for increased throughput over time
- Reduced manual intervention allowed operators to focus on quality, safety, and process oversight rather than manual routing
- Reduced reliance on manual hoses, clamps, gaskets, and valve plugs is expected to lower ongoing wear-item costs over time
Safer, More Reliable Operations
- Reduced risk of product misrouting and cross-contamination
- Reduced reliance on extreme-temperature sanitation methods previously used to compensate for manual systems
- Improved ergonomics and reduced physical strain for operators
Scalable Dairy Processing Automation
- Manifold designed with capacity for additional valves and routing paths
- Physical space reserved for future expansion
- Flexible infrastructure to support increased production and new initiatives
The Conclusion
From initial concept in 2023 to full operation in December 2025, this two-year project demonstrates how a properly engineered mixproof valve manifold can transform hygienic milk production while laying the groundwork for long-term dairy processing automation.
By replacing a manual routing system with a fully automated sanitary process system, Oliver M. Dean helped this dairy processor improve quality, safety, efficiency, scalability, and long-term operating cost control. The result is a future-ready operation designed to meet today’s demands and tomorrow’s growth.
